DGS-50F

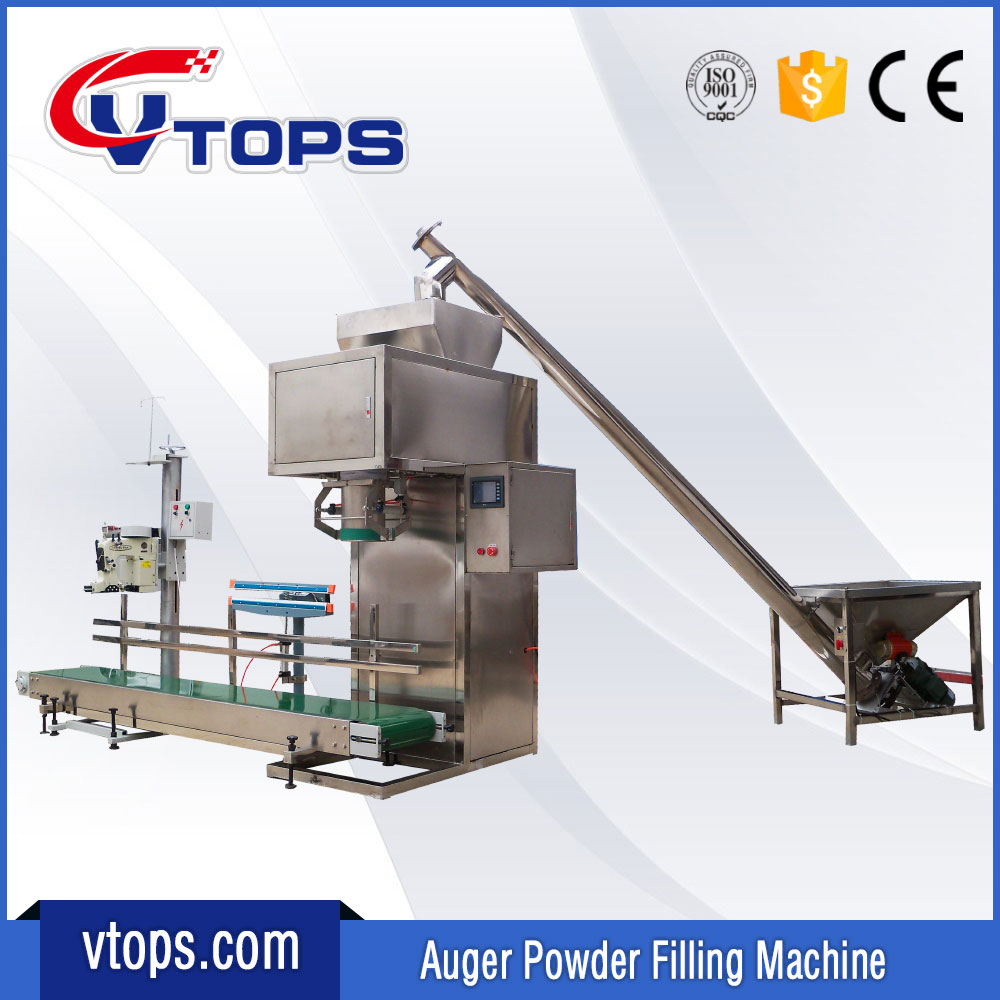

2Kg-50Kg Powder Filling Packing Machines Unit for Big Bags

Model: VTOPS-DGS-50F

Category:

2Kg-50Kg Powder Filling Packing Machines Unit for Big Bags

2Kg-50Kg Powder Filling Packing Machines Unit consists by four components:

  • Automatic Weighing Auger Powder Filler (2Kg-50Kg),
  • Conveyor Device,
  • Sealing Device (hot seal or wire seal),
  • and Feeding machine (Screw Conveyor).

Features:

  1. All production material is stainless steel, contact material: SS304.
    The thickness of hopper is 1.2mm; and the thickness of auger is 2mm.
  2. LCD Touch screen (or electronic screen); PLC controlled. Operation is simple.
  3. Shift production, Daily production, and cumulative production all can be automatic storage.
  4. With the unique broken technology, to prevent the materials caking.
  5. Weighing and control system design meet the IP54 (dustproof and waterproof) requirements.
  6. Independent suspension sensors, signal transmission stability and ensure weighing accuracy.

Technical Parameters:

  • Applicable Materials: Powder, Mixed Powder Materials.
  • Measurement Range: 2-10 Kg, 5-25 Kg, 10-50 Kg
  • Packing Accuracy: ≤ 0.2-0.5%
  • Packing Speed: 3-10 bags/min (Depends on worker and fill weight)
  • Feeding Method: Auger
  • Air Pressure: 0.4-0.6Mpa
  • Air Consumption: 1 m3/h
  • Power: 3P 380V 50Hz 2.2Kw
  • Dimensions: 3000×1500×2500mm
