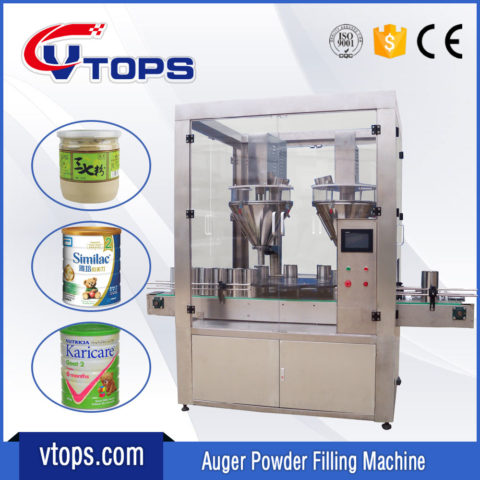

Automatic Powder Bottle Filling Machine | VTOPS-PSH-02

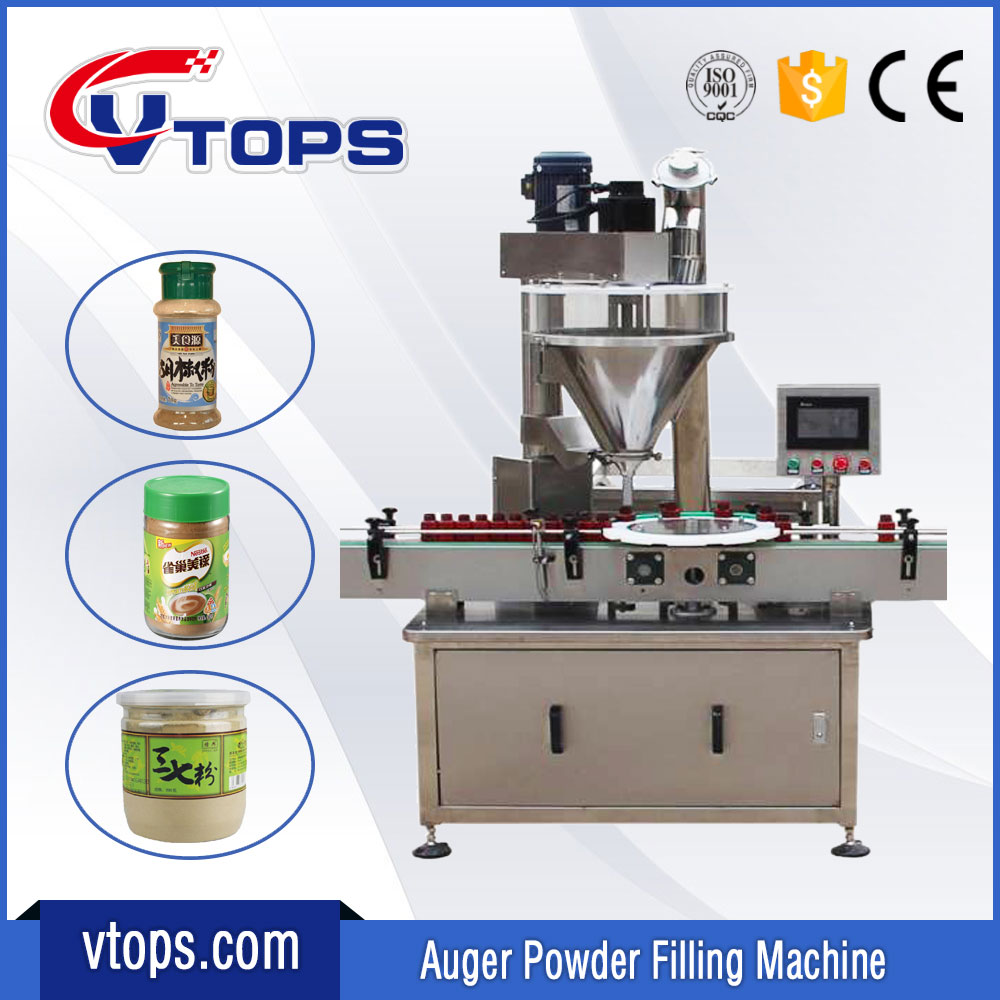

Automatic Powder Filling Machine for Bottles Jars
Automatic powder bottle filling machine is our company in accordance with national GMP standard design. This machine application the latest technology, more reasonable, more concise, and more robust. The material feed into the tank, measuring and filling all automatically complete, suitable for filling powder and granular materials, such as pharmaceuticals powder, milk powder, protein powder, chicken powder, coffee powder, milk powder, solid drink, grape sugar, rice and so on.
Features:
- Rotary positioning device.
- LCD touch screen with both English and Chinese.
- Using cans-shaped or bottle-shaped container. No filling if no or lack container.
- Whole machine structure have reasonable layout, replacement of the material, and clean up easy.
- Servo motor, high-speed and big torque, improved the filling accuracy.
Technical Parameters:
| Model | PSH-02 |
|---|---|
| Brand | VTOPS |
| Filling Weight | 5g-2500g |
| Filled Error | ≤ ±1% |
| Measurement Method | Auger Filler |
| Filling Speed | 0-60 fills/min |
| Filling Motor | Servo Motor |
| Indexing Control | Star-wheel |
| Plexiglass Room | Optional |
| Auger Height Adjustable | Yes |
| Monitorable Hopper | Yes |
| Easy Clean Hopper | Yes |
| Hopper Volume | 50 Liters |
| Dust Suck Device | Optional |
| Contact Materials | SUS 304 |
| Machine Weight | 550 Kg |
| Voltage | AC 3P 380V |
| Powder | 2.5Kw |
| Dimensions | 200*100*210cm |
Video Gallery:
Working video of Rotary Style Powder Jar Filling Machine is following:
Working video of Linear Style Powder Bottle Filling Machine is following:
