A Small Dose Semi Automatic Powder Filler Machine Exported to Singapore

A small dose semi automatic powder filler machine (1 gram to 50 gram) exported to Singapore, this post has details transaction process and details information.

Related Documents

Invoice

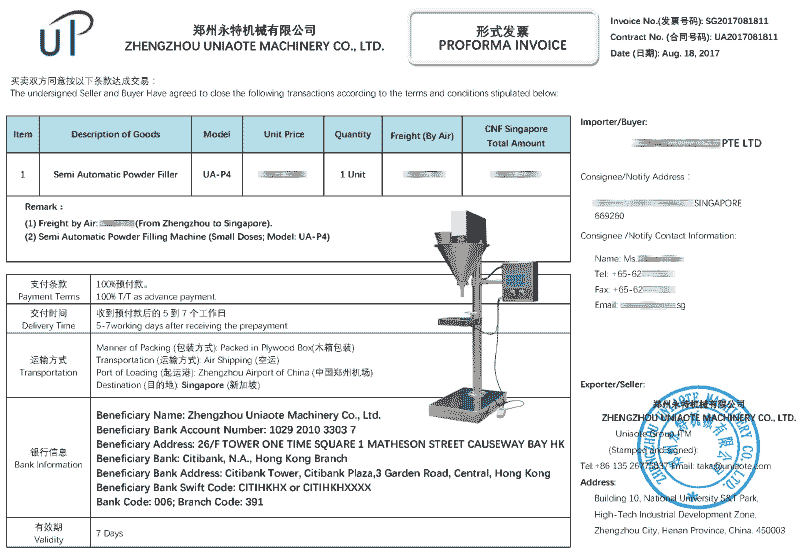

Image Description: Invoice of Small Dose Semi Automatic Powder Filler Machine to Singapore
Issue Date: Friday, August 18, 2017

Bank Receipt

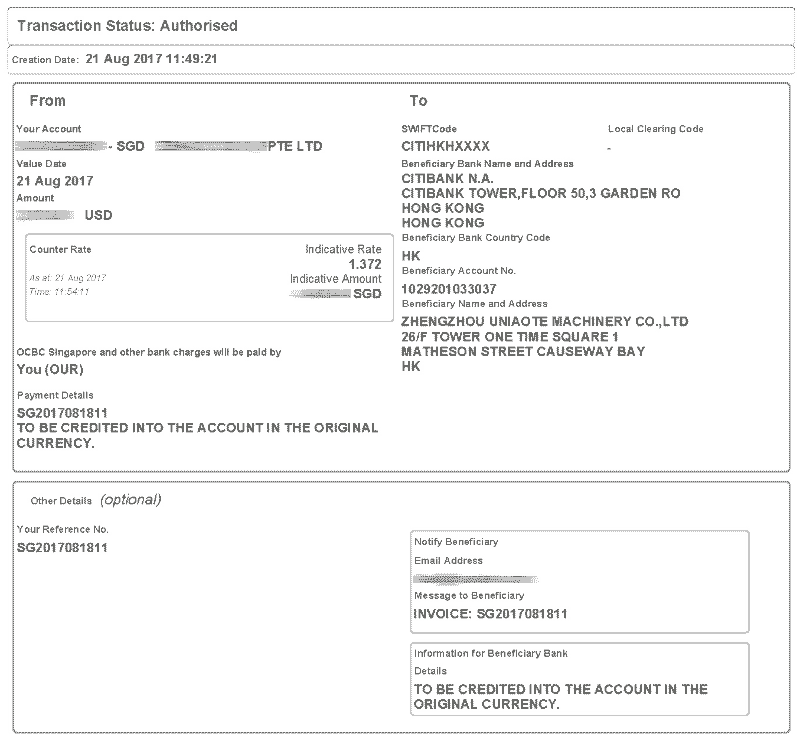

Image Description: Bank Receipt of Small Dose Semi Automatic Powder Filler Machine to Singapore
Transaction Status: Authorised
Creation Date: 21 Aug 2017 11:49:21

Pre-delivery Photos

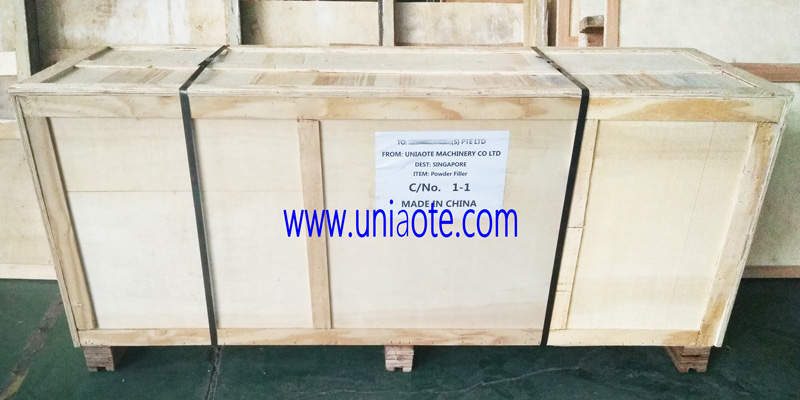

Pre-Packaging in Plywood Box

Image Description: A Photo of Small Dose Semi Automatic Powder Filler Machine Pre-delivery.

Image Description: A Photo of Small Dose Semi Automatic Powder Filler Machine Pre-delivery.

Before Delivery

Image Description: A Photo of Small Dose Semi Automatic Powder Filler Machine Pre-delivery.

Details Information of Small Dose Semi Automatic Powder Filler Machine (1g – 50g)

Powder quantitative filling machine of small dose semi automatic powder filler machine (1g – 50g) adopts auger metering method. It is with electronic feedback system. Combined with micro-computer achieve many automatic functions. Such as: automatic quantitative filling, automatic error correction, count, clear material, and so on.

Features

1. Microcomputer controlled: the parameters is adjustable, the error can be automatically corrected.
2. Easy to use: without space restriction.
3. Good corrosion resistance not contaminated material.
4. Bags, bottles both containers can be.

Technical Parameters

• Measurement Range: 1-50g (Need to Replace the Auger Filler Tube)
• Filling Speed: 1500-2500 times/ hour
• Accuracy: ± 1%
• Power: AC220V 50Hz 0.3Kw
• Dimensions: 600 × 500 × 1600mm

The Diameter List of Auger Filler Tube

• 1g-5g φ20mm – φ22mm
• 5g-10g φ20mm – φ26mm
• 10g-50g φ26mm – φ28mm
• 40g-100g φ30mm – φ34mm
• 100g-300g φ38mm – φ40mm
• 300g-500g φ40mm – φ45mm
• 500g-1000g φ50mm – φ55mm
• 1000g-5000g φ60mm – φ65mm

* The diameter of auger filler tube for reference only. Please contact our engineers for details. Thank you!

Image Description: Auger Filler Tube

How dose it shipping?

• Packaging Information:
  • We packaged the machine in Plywood Box.
  • The Dimensions of the Plywood Box: 1800 × 800 × 700mm; 1CBM; 100Kg.
• Transport Information: By Air.

After Service

Guarantee

Guarantee: 12 months. Beginning with the date our machinery has fully installed in clients plant.

• Excluded from the warranty are problems due to accidents, misuse, misapplication, storage damage, negligence, or modification to the Equipment or its components.
• Also the easy broken spare part is not included in the guarantee

Installation and Commissioning

1. If the buyer requires, the seller shall send one or two technician to direct installation, commissioning, trial-run, and training local workers.
2. The buyer is responsible for board and lodging; return tickets, safety of technician. In addition, the buyer is responsible for technician’s salary, USD120 per day per person.
3. The buyer also can accord the video provided by the seller to install the equipment by themselves.

How to contact us?

We encourage you to bring your filling needs to us and give us the opportunity to provide you with exactly what you need.

We know that your products and business are valuable and when you choose one of our systems you are making a choice of guaranteed excellence.

Aslo, you can email us: [email protected]. My WhatsApp ID: +86 17737712080.
